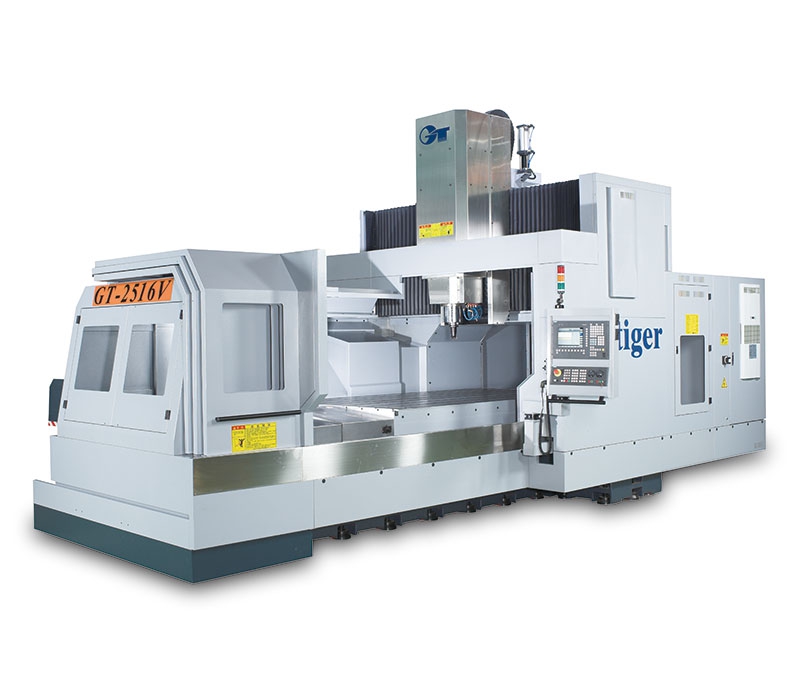

Gentiger GT-2516V
| MODEL | T10 | T15 | S24A |
|---|---|---|---|
| Travel (X / Y / Z) | 2,500 x 1,600 x 700 / 800 mm (Opt.) | ||
| Cutting Feedrate (X / Y / Z) | 20 x 18 x 20 m/min | ||
| Rapid Feedrate (X / Y / Z) | 20 x 18 x 20 m/min | ||
| Table Area | 2,800 x 1,600 mm | ||
| T-Slot | 22 x 210 x 8 mm | ||
| Height of Table from Ground | 980 mm | ||
| Max. Height of Working Piece | 700 / 1,000 mm (Opt.) | ||
| Distance from Spindle Nose to Table Surface | 300 ~ 1,000 mm / 250 ~ 1,050 mm (Opt.) | ||
| Max. Load of Table (Average Load) | 10,000 kg | ||
| Max. Spindle Speed | 10,000 rpm | 15,000 rpm | 24,000 rpm |
| Type of Spindle Motor | Direct Drive | Direct Drive | Built-in |
| Bearing Lubrication | Grease | Grease | Oil-Air |
| Spindle Cooling | Oil-Cooling | Oil-Cooling | Water-Cooling |
| Spindle Taper | BT / BBT-50 | BT / BBT-50 | HSK-A63 |
| Spindle Motor | 22 kw | 22 kw | 30/39 kw |
| Spindle Torque | 140 Nm | 140 Nm | 29.1/38.7 Nm |
| Spindle Bearing Ins.Diameter | Ø90 mm | Ø90 mm | Ø65 mm |
| ATC Capacity | 20 tools / 40 tools (Opt.) | ||
| ATC Tool System | BT / BBT-50 | BT / BBT-50 | HSK-A63 |
| Max. Tool Diameter | Ø133 mm | Ø133 mm | Ø100 mm |
| Max. Tool Length | 300 mm | 300 mm | 250 mm |
| Max. Tool Weight | 15 kg | 15 kg | 7 kg |
| Total Power Consumption (Max.) | 50 KVA | ||
| Coolant Tank Capacity | 1170 Liter | ||
| Controller | SIEMENS | ||
| Servo Motor for 3 Axes | X: 21.99 kw / Y, Z: 10 kw | ||
| Machine Dimension | 7,290 x 3,580 x 3,724 mm | ||
| Packing Dimension | 7,800 x 3,800 x 4,000 mm | ||
| Machine Net Weight | 30,000 kg | ||
| Machine Gross Weight | 33,000 kg | ||
