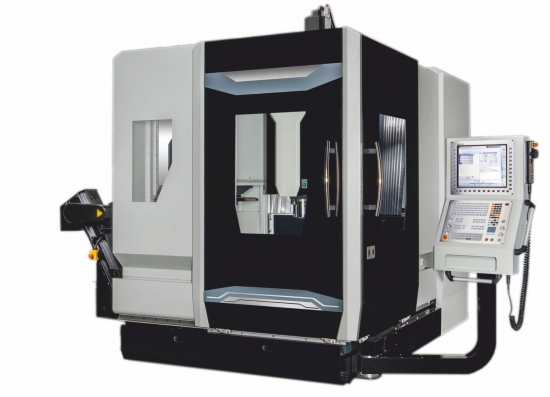

MANFORD VU-620 / CNC İŞLEME MERKEZİ
Travel
| X / Y / Z travel | 620/520/460 (24.4/20.4/18.1 Inch) mm |
|---|---|
| Spindle nose to table surface | 150~610 (5.9~24 Inch) mm |
| X / Z Guide ways | Linear guide (roller type) |
Table
| Table size | ∅650 (25.5 Inch) mm |
|---|---|
| T slot ( Size / Qty / Dist. ) | 18x5x100 mm |
Spindle
| Transmission of spindle & motor | Direct type (*Built-in) |
|---|
Feed Rate
| Rapid feed rate of XYZ | 36/36/36 M / min |
|---|---|
| Cutting feed rate | 1~15,000 mm |
Automatic Tool Changer
| Tool storage capacity | 32 tools (*40 tools/60 tools) |
|---|---|
| Max. tool diameter / next tool empty diameter | Full:∅75 (2.9 Inch) Next empty:∅125 (4.9 Inch) |
Other
| Machine dimension ( L x W x H ) | 4,250×4,120×2,980 mm 167.3×162.2×117.3 inch |
|---|---|
| Machine net weight | 18,078 LBS |
ATC
| Max. tool length | 250 (9.8 Inch) mm |
|---|---|
| Max. tool weight | 15 Ibs |
Headstock
| Spindle taper | BBT40 |
|---|---|
| Spindle motor | 10/12.5 kw |
| Spindle speed | 12,000 (*15,000/24,000) rpm |
