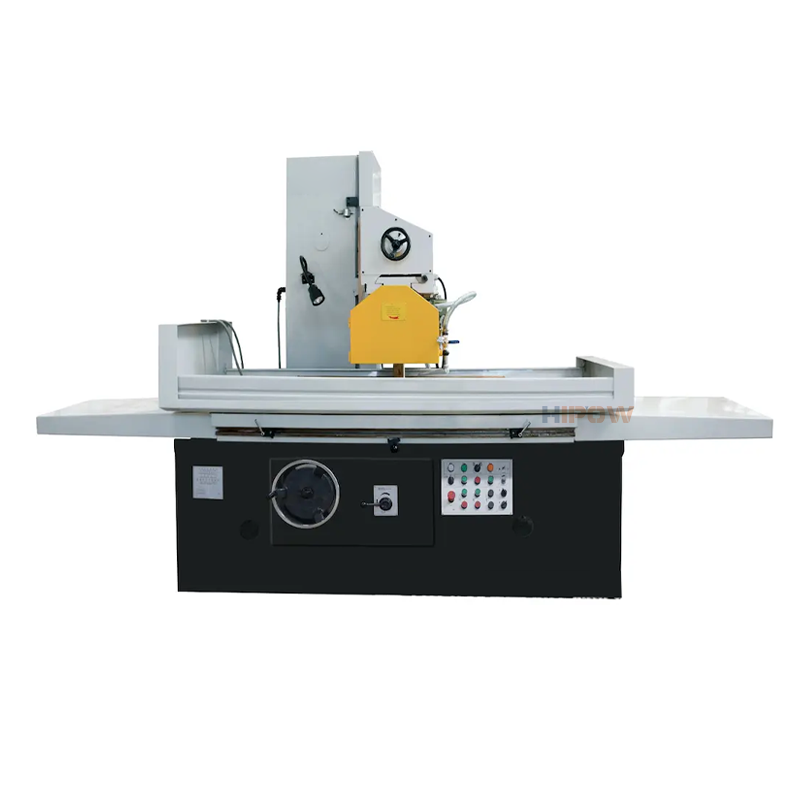

M7150 Hydraulic Surface Grinder
| Model | M7150*1250 | ||||
| Working table | Table Size (L× W) | mm | 1250*500 | ||
| Max Longitudinal movement of work table | mm | 1350 | |||
| T -Slot number×width | 5×18 | ||||
| Speed of work table（stepless） | m/min | 3–25 | |||
| Grinding head | Max distance from spindle center to table surface | mm | 800 | ||
| Max movement of grinding wheel | Cross movement（Manual and Hydraulic） | mm | 580 | ||
| Vertical movement（Manual） | mm | 600 | |||
| Spindle speed | rpm | 1440 | |||
| Wheel Size（Outer diameter×width×Inner diameter） | mm | Φ400×40×φ127 | |||
| Scale on the vertical handwheel | mm | 0.01 | |||
| Vertical movement of wheel head of per handwheel | mm | 1.00 | |||
| Total power of motor | kw | 12 | |||
| Grinding wheel motor | Power | kw | 7.5 | ||
| Speed | r/min | 1440 | |||
| Rapid up-down motor | Power | kw | 0.37 | ||
| Speed | r/min | 1440 | |||
| Oil pump motor | Power | kw | 4 | ||
| Speed | r/min | 960 | |||
| Coolant pump motor | Power | kw | 0.125 | ||
| Speed | r/min | 2800 | |||
| Oil pump | Flow | L/min | 125 | ||
| Working pressure | MPa | 1.5 | |||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | ||
| Surface roughness | µm | Ra0.63 | |||
| Weight | N/G | kg | 5300/6000 | ||
| Overall dimension（L×W×H） | mm | 3210x1750x2250 | |||
