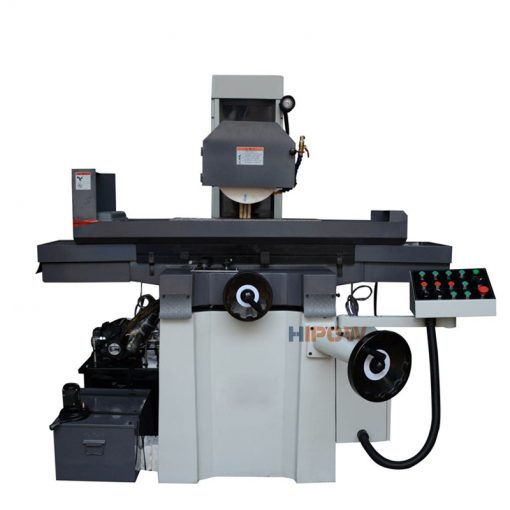

MY1224 Hydraulic Surface Grinder
| Technical Parameters | Units | MY1224 | |
| Max. Table Travel ( L× W) | mm | 630× 320 | |
| Max. Grinding Length | mm | 600 | |
| Max. Grinding Width | mm | 300 | |
| Distance From Table Surface To Spindle Center | mm | 480 | |
| Slide way | V-type rail with Steel-ball | ||
| V-type rail with Steel-ball | Kg | 200 | |
| Table Size (L× W) | mm | 600× 300 | |
| T -Slot | mm× n | 14× 1 | |
| Speed of working table | m/min | 3-20 | |
| Cross Feed On Handwheel | mm | 0.02/Graduation2.5/revolution | |
| Vertical Feed On Handwheel | mm | 0.01/Graduation1.25/revolution | |
| Wheel Size (dia× width× bore ) | mm | Φ300× 25.4× Φ75 | |
| Spindle Speeds | 50Hz | rpm | 1450 |
| Total Power | Kw | 3.79 | |
| Spindle Motor | Kw | 2.2 | |
| Working Pressure | Mpa | 4 | |
| Max. Capacity | L/min | 20 | |
| Oil tank capacity | L | 100 | |
| Surface Roughness | μ m | Ra0.32 | |
| Parallelism | mm | 300: 0.005 | |
| Machine Size (L× W× H) | mm | 1960× 1480× 1850 | |
| Packing Size (L× W× H) | mm | 2000×1530×2020 | |
| Gross; Net weight | T | 1.53; 1.4 | |
