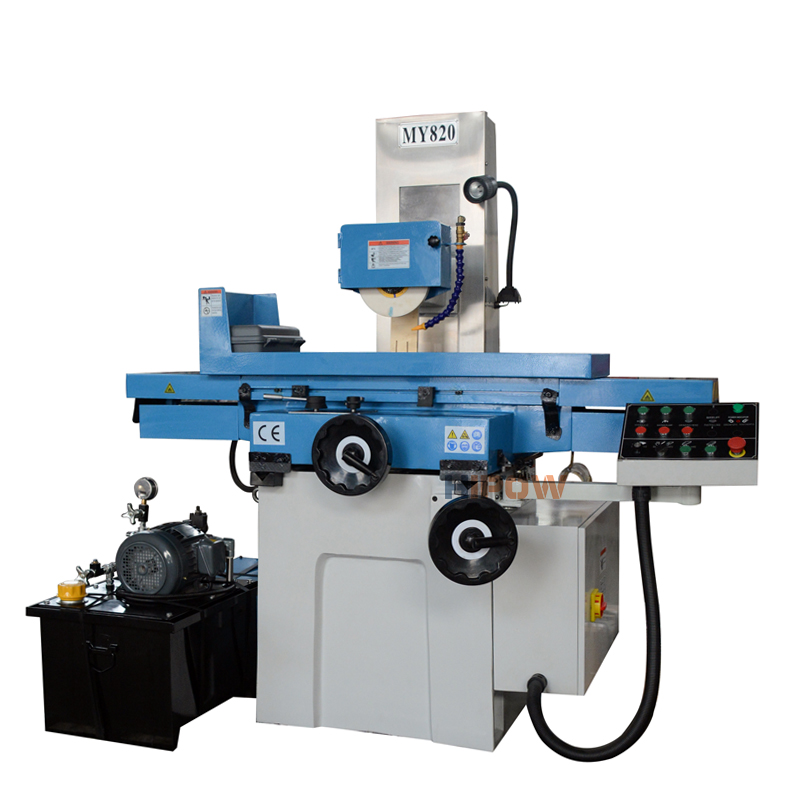

MY820 Surface Grinding Machine
| Technical Parameters | Units | MY820 | |
| Max. Table Travel ( L× W) | mm | 530× 220 | |
| Max. Grinding Length | mm | 480 | |
| Max. Grinding Width | mm | 200 | |
| Distance From Table Surface To Spindle Center | mm | 450 | |
| Slide way | V-type rail with Steel-ball | ||
| V-type rail with Steel-ball | Kg | 200 | |
| Table Size (L× W) | mm | 480× 200 | |
| T -Slot | mm× n | 14× 1 | |
| Speed OF Working Table | m/min | 3-20 | |
| Cross Feed On Handwheel | mm | 0.02/Graduation2.5/revolution | |
| Vertical Feed On Handwheel | mm | 0.01/Graduation1.25/revolution | |
| Wheel Size (dia. × width× bore ) | mm | Φ200× 20× Φ31.75 | |
| Spindle Speeds | 50Hz | rpm | 2850 |
| Spindle Motor | Kw | 1.1 | |
| Hydraulic station motor | Kw | 1.5 | |
| Working Pressure | Mpa | 3 | |
| Max. Capacity | L/min | 18 | |
| Minimum Of Numerical | L | 80 | |
| Coolant Pump | Kw | 0.04 | |
| Minimum of Numerical Display | mm | ||
| Machine Size (L× W× H) | mm | 1680× 1140× 1760 | |
| Packing Size (L× W× H) | mm | 1630× 1170× 1940 | |
| Gross; Net | T | 0. 85; 0.75 | |
